How Does Hardware Virtualization Work? Understanding the Process

What Are the Key Components of Hardware Virtualization?

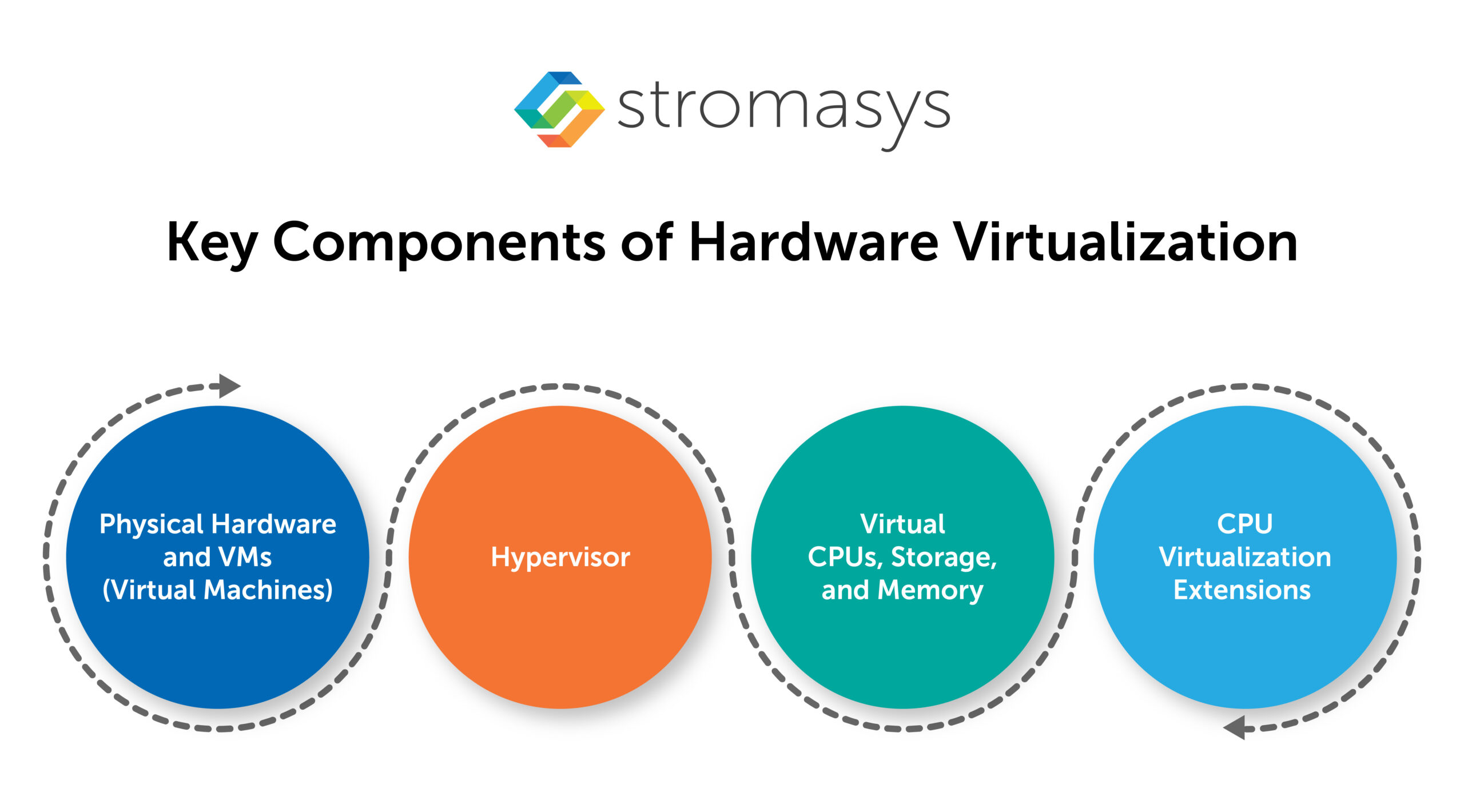

Here are the key components of hardware virtualization:

Physical Hardware and VMs (Virtual Machines)

Physical hardware consists of various server components like CPU, memory, network interfaces, and storage. Virtual machines are software-based simulations on physical hardware. They are used to run multiple OS and workloads on host systems within isolated containers.

Hypervisor

The key component for hardware virtualization is the hypervisor. It is also known as the Virtual Machine Manager (VMM). The hypervisor acts as a bridge between the physical system and the virtual machine. It helps in managing distribution of resources and ensure there is a robust isolation between different guest operating systems that are running. Each virtual machine acts like a standalone system that runs its own OS, applications, and workloads while sharing the same physical host hardware. There are two types of hypervisors:

• Type 1 Hypervisors (Bare-metal): These hypervisors can be directly installed on the physical servers and do not need any host operating systems. They were known for their robust security and high efficiency. Some of the common examples are Microsoft Hyper-V and VMware ESXi.
• Type 2 Hypervisors (Hosted): They operate on the host operating system and manage virtual machines within those host systems. They are ideal for development or desktop use. Some of the most common examples include VMware Workstation and Oracle VirtualBox.

Virtual CPUs, Storage, and Memory

In each virtual machine, the hypervisor allocates virtual memory, CPUs, and storage by mapping them to the host’s physical resources. These resources can then later be dynamically adjusted depending on the workload changes.

CPU Virtualization Extensions

It can be said that hardware virtualization can reach its full potential when it is supported by CPU virtualization extensions. Modern CPU from Intel and AMD offers dedicated virtualization extensions like AMD-V and Intel VT-x. They help in streamlining the virtualization process while minimizing performance overhead. This allows the hypervisor to invoke CPU instructions for virtualization operations directly. Their architecture support boosts the address translation, context switching, and execution of VMs at near-original speeds, ensuring a successful large-scale virtualization process.

Why is Hardware Support Important?

It is crucial to understand why hardware support is required and what happens without these extensions. Virtualization entirely relies on software technologies like binary translation that incur significant performance overhead. It is necessary for a hypervisor to intercept and rewrite sensitive instructions. These instructions are sent from guest operating systems, which can also cause computational bottlenecks.

The processor manages several virtualization tasks, and with seamless hardware support, it can enable:

• Guest operating system instructions can be directly executed
• Seamless management of hardware-level memory
• Context switching overhead can be easily minimized
• Enhanced security due to hardware isolation

What Are the Different Types of Hardware Virtualization?

There are three different types of hardware virtualizations.

Full Virtualization

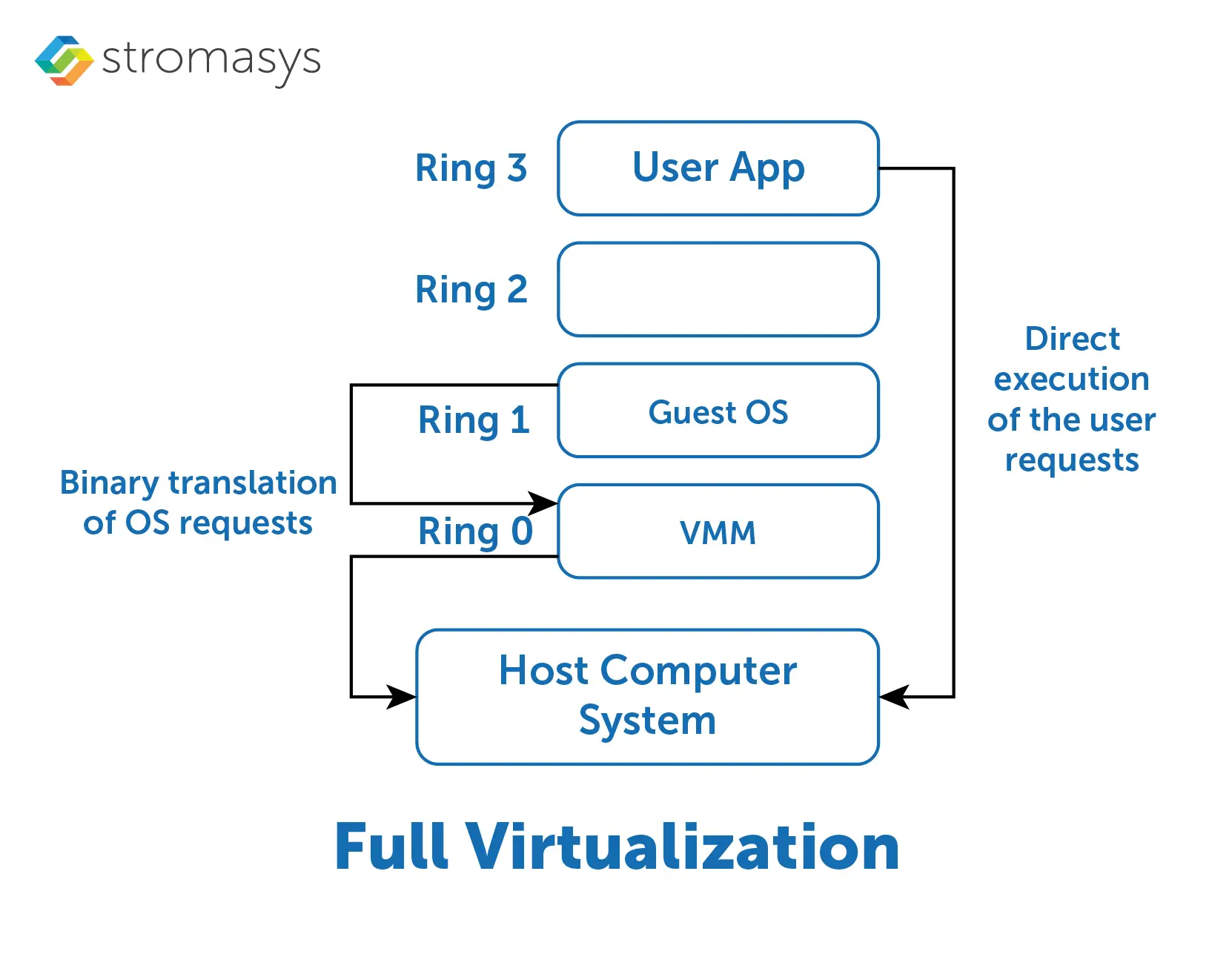

In the complete virtualization process, hypervisors emulate the physical hardware entirely. This allows them to run in the isolated VMs without modifying the guest operating systems. Every application can run on standalone hardware. This makes it ideal for systems that need maximum compatibility.

Paravirtualization

In the paravirtualization method, modifications are made so that guest operating systems can efficiently communicate with the hypervisor. This communication is carried out using hypercalls that can reduce resource overhead but require kernel changes.

Hardware-Assisted Virtualization

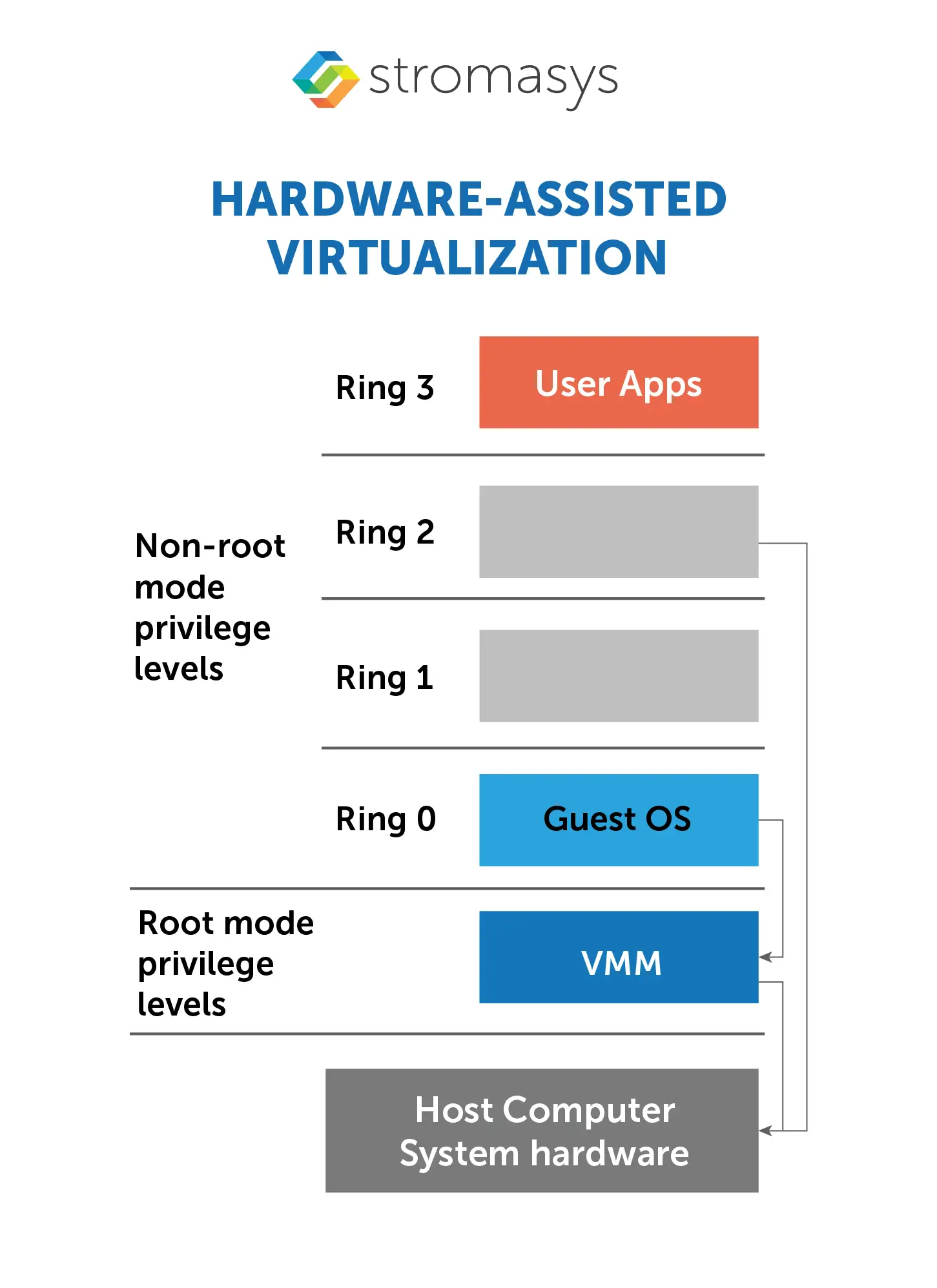

In the hardware-assisted virtualization method, the hypervisor relies on CPU extensions like VT-x and AMD-V to emulate and improve performance. This hardware virtualization is gaining popularity in modern virtualization platforms.

What Are the Key Benefits of Hardware Virtualization?

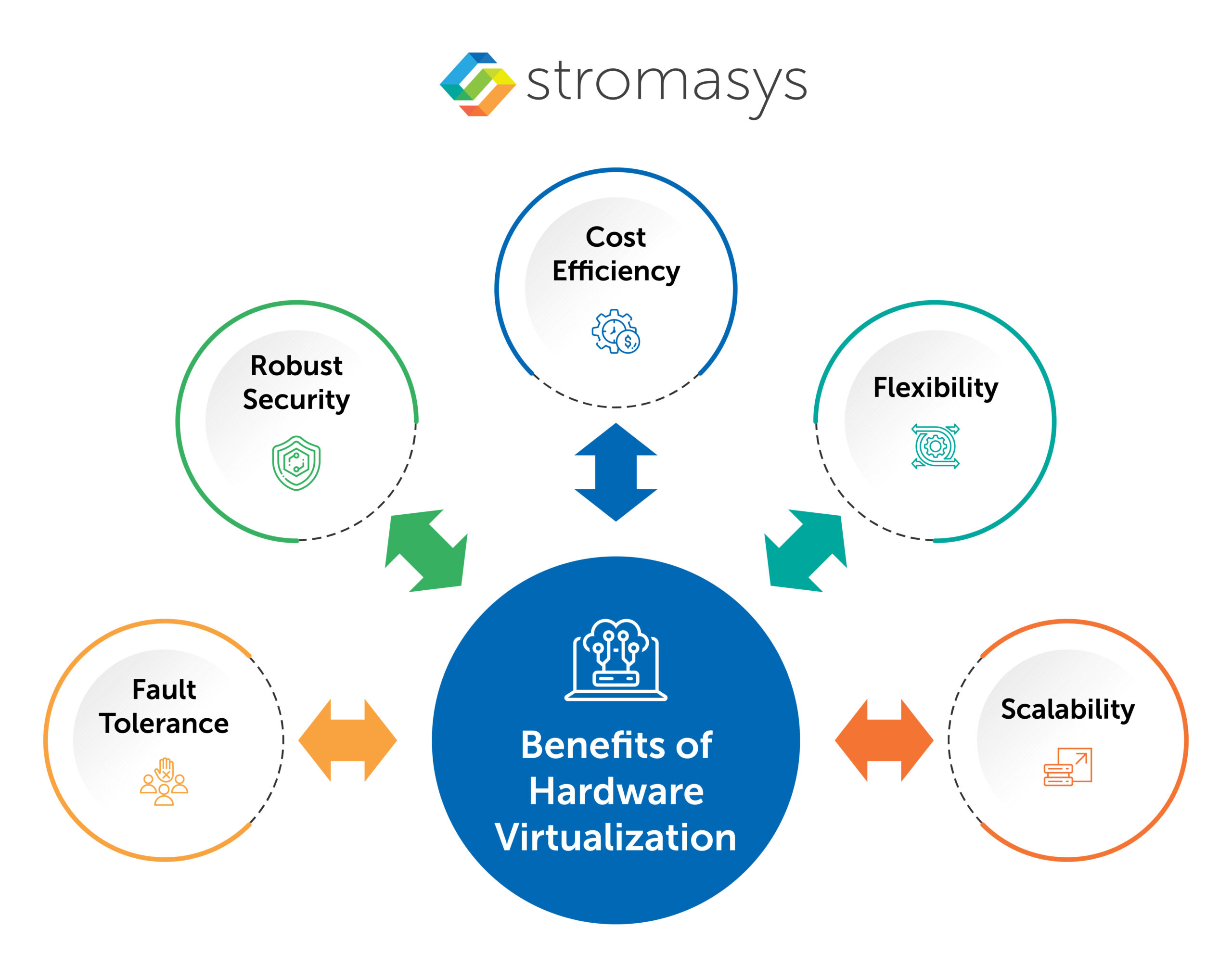

Here are several benefits of hardware virtualization in business:

• Cost Efficiency: The hardware virtualization minimizes the costings for configuring, maintaining and purchasing physical hardware. The enterprise only needs to spend on a single robust host machine rather than multiple servers. This system can be used with virtualizing systems and managing resources among the virtual machines to operate on different tasks.
• Flexibility: The virtual machine configurations can be saved in the form of images and can be easily deployed across multiple hardware or migrated among different servers.
• Scalability: When there is a rise in demand, more virtual machines can be incorporated to add more resources to meet the customers’ increasing demand and manage operations.
• Fault Tolerance: It allows taking VM snapshots at any time, and copies are distributed geographically. So, in the scenario of hardware failure, operations would not halt. The workloads on the current elements will be managed by integrating additional resources for smooth functioning.
• Robust Security: Hardware virtualization offers impeccable security measures. As all the virtual machines are isolated with one another. In case of any VM getting compromised, it won’t affect the others.

How Does Hardware Virtualization Work?

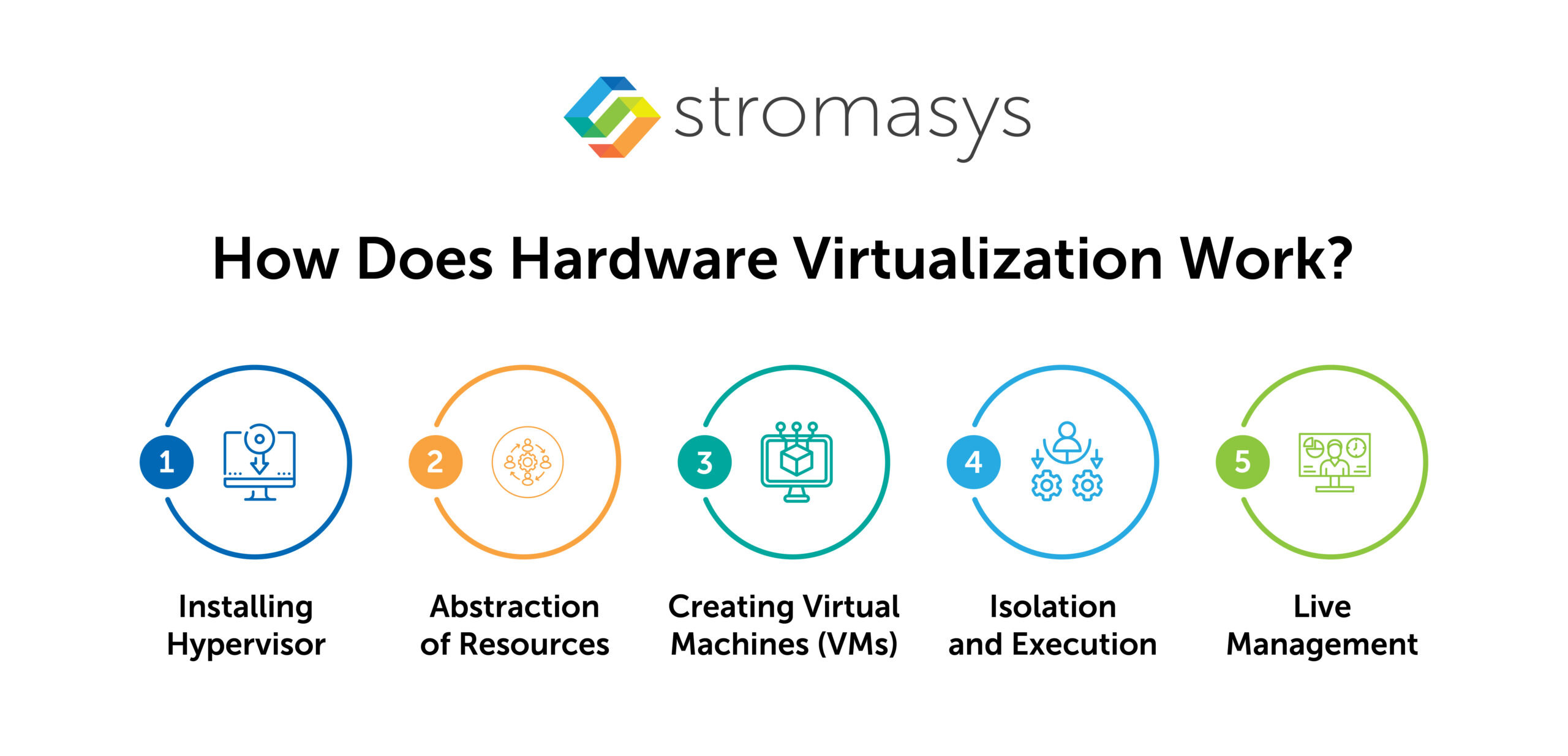

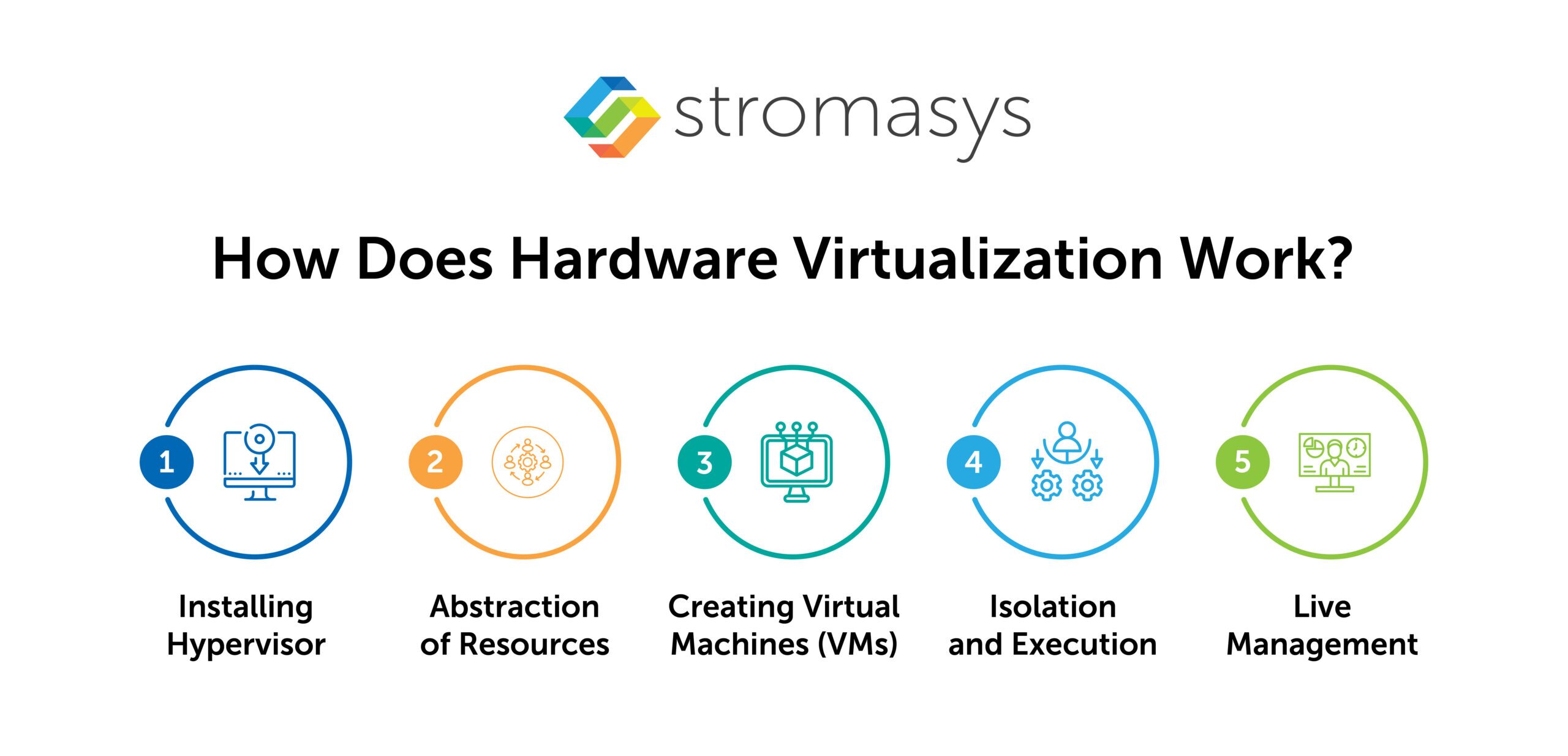

Here is the step-by-step process explaining how hardware virtualization works:

Installing Hypervisor

The process begins with the installation of hypervisors directly on the physical hardware or the existing OS.

Abstraction of Resources

For every VM, the hypervisor abstracts hardware resources, including CPU, memory, and storage, to present them to configurable isolated pools.

Creating Virtual Machines (VMs)

As per the business requirement, the admins allot virtual CPUs, define VMs, RAM, and storage disk space. Every VM boot has its own OS, totally unaware that there are other OS running on the same physical server.

Isolation and Execution

Hypervisor manages the instructions from the guest OS and workloads that are isolated from the other virtual machines. For high efficiency and performance in hardware-assisted modes, several CPU calls are managed by the built-in virtualization extensions.

Live Management

For uninterrupted operations of the applications, hypervisors enable VM snapshots, scale up resources, migrations between servers, and manage security controls.

Usage of Hardware Virtualization in Different Industries

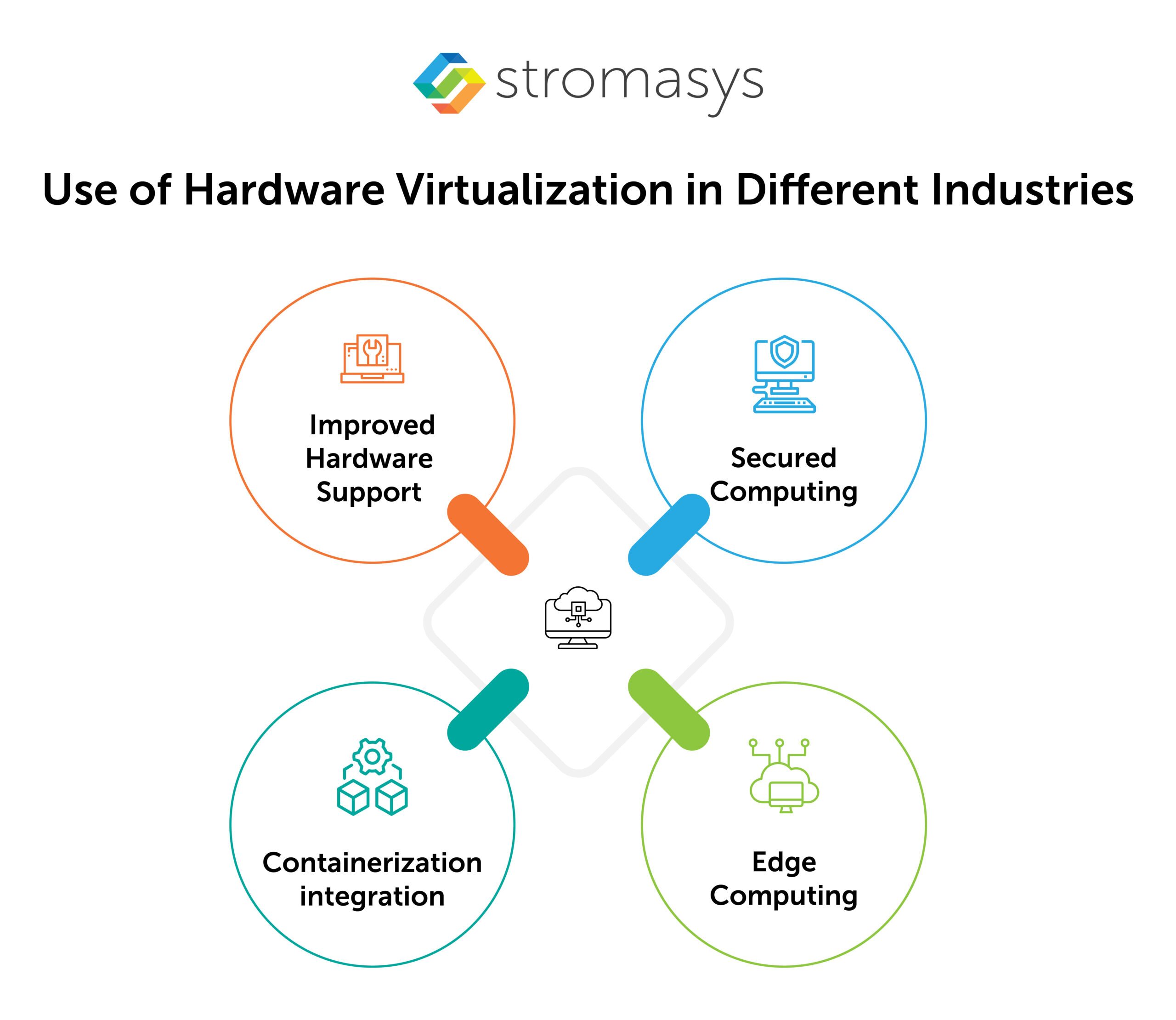

Hardware virtualization continues to evolve. Here are emerging virtualization innovations with their next-gen capabilities:

Improved Hardware Support

The new CPU generation offers new added features like larger TLB sizes, faster VM exit/entry, and enhanced memory management.

Secured Computing

Maintaining privacy is the highest priority that virtualization focuses on. Technologies like Intel TDX and AMD SEV encrypt VM memory and secured infrastructure that protects it even from the hypervisor.

Containerization integration

The hybrid approach integrates container efficiency with VM isolation. It means it runs containers inside virtual machines for high density and robust security.

Edge Computing

Compact hypervisors allow virtualization to run on resource-constrained edge devices. This enables VM benefits throughout distributed architectures.

What Are the Common Challenges and Troubleshooting for Hardware Virtualization?

Here are some common challenges:

• Performance Impact: With hardware virtualization, modern systems can achieve the near-native speeds but there may be some computational overheads that remains unavoidable.
• Operational Complexity: Successfully managing and deploying a virtualized environment requires in-depth knowledge of how to manage and maintain it.
• Security Vulnerabilities: Careful management of potential risks like VM escapes.

Here are some troubleshooting steps to take:

• Validating CPU virtualization extensions (VT-x/ AMD-V) that are enabled in BIOS.
• To prevent any performance issues and inefficiencies it is recommended to avoid overburdening the resources.
• Always install the updates and patches for hypervisor software when they are released. It will help in mitigating security vulnerabilities and bugs.
