All You Need to Know About PDP 11: Evolution and Reaching Obsolescence

Articles

The PDP 11 was first introduced in the 1970s. It is a series of 16-bit microcomputers developed by the Digital Equipment Corporation (DEC). It was one of the most influential minicomputers in the history of computing that bridged the gap between large mainframe and emerging microcomputers.

PDP 11 played a vital role in developing and popularizing the Unix operating system. It was popular in research institutes, universities, and enterprises for its expandability, adaptability, and affordability.

This article thoroughly explores the PDP 11 hardware, its features, evolution, competitive challenges, and the reason behind its obsolescence.

Overview of PDP 11 Hardware

Before the microcomputer revolution, the Digital Equipment Corporation’s (DEC) PDP 11 was among the most popular minicomputers used in industries. PDP software, or Programmed Data, was introduced in the 1970s and used until the early 1990s. According to sources, DEC sold around 600,000 PDP 11 models.

The PDP 11 hardware was a 16-bit computer that embraced 8-bit bytes and used the ASCII character set. In the early years of microcomputers, 8-bit bytes, 9-bit bytes, 6-bit characters, and a jumble of other encodings were widely used. Did you know? DEC still uses EBCDIC (Extended Binary Coded Decimal Interchange Code) for the 80-column punched cards because it is compatible with IBM card punch machines.

The innovative features in the PDP solution, especially the general-purpose registers and instruction sets, have made programming simple in the previous models of the PDP series. Also, the Unibus system enables external devices to seamlessly interface with the system using direct memory access, which opens the systems to a wide range of peripherals.

PDP 11 is the successor to PDP 8 in most real-time computing solutions, though they have worked parallelly for over a decade. This is mainly due to the ease of programming in PDP 11. The architecture of PDP 11 was an inspiration to the late 1970s microprocessors like Motorola 68000 and x86, while the operating system (OS) designs, along with other DEC systems, became the blueprint for the subsequent OS, including CP/M and MS-DOS. Moreover, the Unix operating system first operated on the PDP-11/20 model. Later, it was stated that C programming languages were incorporated into various low-level PDP-11-dependent programming features. Creating a 32-bit addressing from the 16-bit PDP-11 led to the development of VAX-11 architecture.

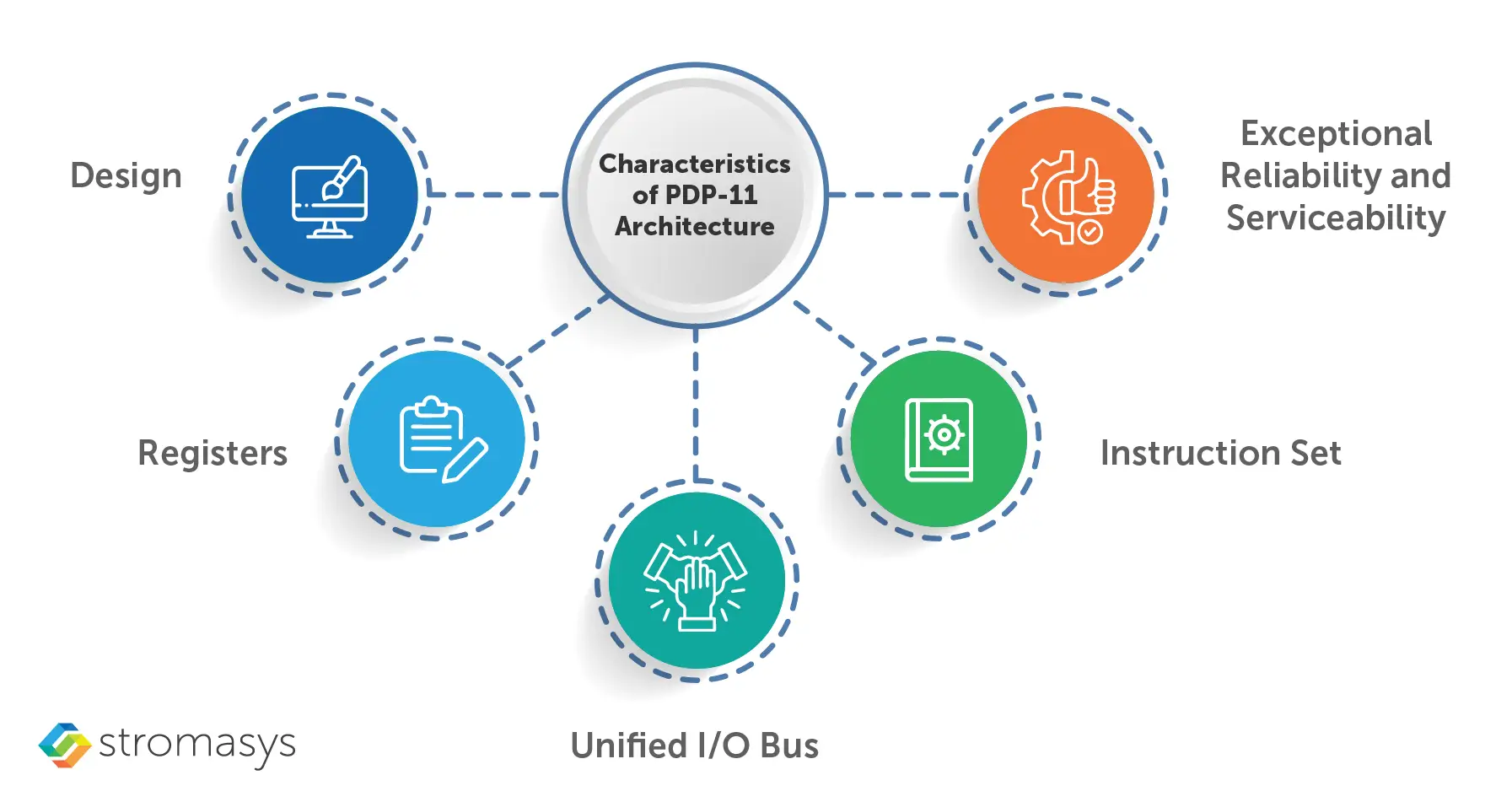

What Are the Noteworthy Characteristics of PDP-11 Architecture?

Here are some technical characteristics of PDP 11 that made it very popular in the era of computing:

Design

The developer of 16-bit PDP 1, Harold McFarland, wanted to create simple and useful designs rather than something complex. This simple design was sufficient for regular users who do not need heavy features only used in big science computers. There were three key principles for its design:

• A small set of registers (8 accessible registers) are used for flexible programming.
• The unique Unibus architecture offers unified memory and devices for easy system expansion.
• The compact instruction pipeline enables high code density and easy programming modules.

Registers

8 CPU registers are used in the PDP-11 hardware. They are:

• The six general purpose registers used are R0-R5
• The stack pointer is R6
• The program counter R7

It is a significant update from the previous systems as it uses the 16-bit register bank, which supports simplified programming through intuitive semantics.

With time, the architecture evolved by including small branch targets and more complex addressing. However, successors to PDP 11, like 32-bit VAX-11, still used the original register model to ensure the continuity of previous applications. The fact that it lasted for decades proves the efficiency of its inherent code and flexibility.

Unified I/O Bus

Unibus has transformed adaptability through its shared bus architecture, which enables components across the system to interact seamlessly as a logical address space.

In the uniform 22-bit address continuum, storage devices, memory models, network interfaces, and more can be found. This unified access reduces hardware size while allowing flexible combinations. The design of Unibus easily facilitates data transfer without requiring a separate I/O processor, which means it helps save on infrastructure costs. Also, the Graduated Bus speeds help maintain the pace with rapidly evolving technology.

PDP 11’s proven versatility due to its Unibus, along with the consistent peripheral controllers and added capabilities, made it popular in the early computing era.

Instruction Set

CPU instruction helps in improving a computer’s overall efficiency. The PDP 11 uses an orthogonal instruction set, that limits operations to 56 core functions. This compact orthogonal instruction set streamlined programming through:

• Reduced learning concepts
• Standard operation code (opcode) patterns
• Uniform syntax across related operations
• High code density, which is more appropriate for minimal memory

This consistency helped with coding efficiency and improved operational speed and system resilience. Additional abilities like floating point math and memory segmentations have evolved the generations of PDP-11, but its restraint ensured its continued compatibility with previous legacy applications and PDP solutions.

Exceptional Reliability and Serviceability

While developing PDP 11, DEC sought maximum resilience across the entire system, including both the hardware and software. The diagnostic abilities, fault-handling capabilities, and component assortment helped deliver uninterrupted uptime.

This availability of PDP 11 for seamless mission-critical operations made it popular in hospitals, military platforms, utility sectors, and other domains that required clock stability.

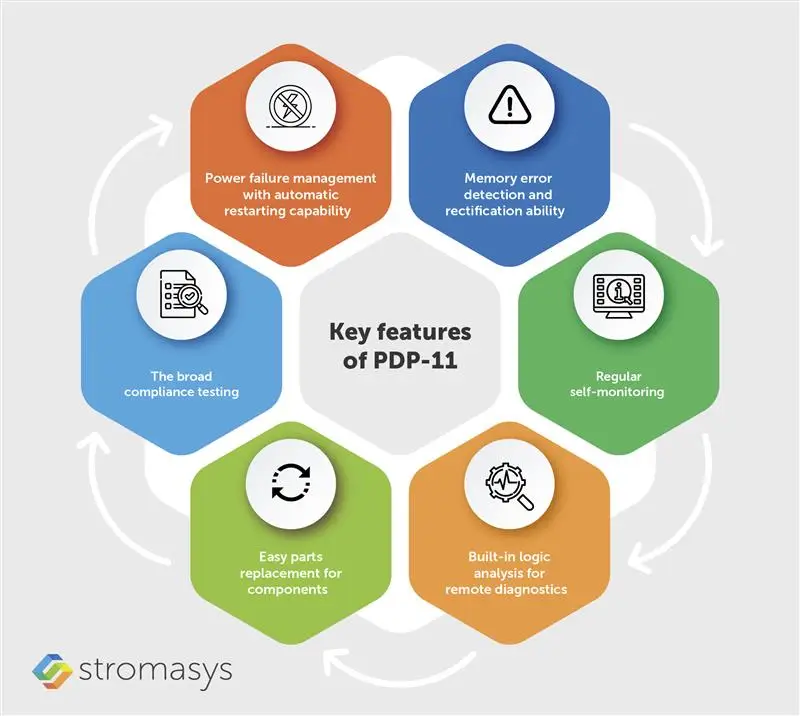

PDP 11 key features included:

• Unmatched power failure management with automatic restarting capability
• Unparallel memory error detection and rectification ability
• Regular self-monitoring or confidence testing
• Built-in logic analysis for remote diagnostics
• Easy parts replacement for components allowing quick-release fittings
• The broad compliance testing ensures secure incorporation with the facilities

Digital Equipment Corporation maintained tight quality control by developing its own LSI chipsets and boards, which reduced mechanical failure points as integration increased. This meticulous design of PDP software allows seamless round-the-clock operations.

The architecture of PDP-11 mainly was to ease the manufacturers, who did not have much specialized training. The components required for assembly are not very critical and are used as a backplane with wire-wrapped connections.

Decline of PDP 11 Systems in the 1980’s

The PDP-11’s architecture is very basic and flexible, which allows continuous updates to integrate with new technologies. However, the Unibus and Q-Bus’ limited throughput became the performance bottleneck, along with the 16-bit logical address limitations, hindering the production of heavy software applications.

The successor of the PDP-11 system was DEC’s 32-bit VAX-11 (Virtual Address eXtension), a superminicomputer designed for the high-end time-sharing market. The processor of VAX CPUs offered a PDP-11 compatibility mode that allowed several legacy systems to run parallel with the new 32-bit system, which was later dropped with the first MicroVAX system.

PDP 11 was the smallest system capable of running Unix operating systems for decades. Still, by 1980, the IBM PC and its clones running on MS-DOS and Windows took over the minicomputer market. With competition rising in the personal computing market in the 1980s, DEC struggled with adapting and addressing requirements beyond end users.

Also, the derivatives of PDP-11 did not resonate well with the 80’s computing landscape. With no desktop systems backup, profits were declining severely. The rising economic pressure in the early 90s compelled a significant restructuring of DEC’s remaining customers. The usage of aging PDP software gradually declined. In 1994, all the PDP solutions were bought by Mentec, an Irish PDP-11 specialist organization that developed compatible devices for a couple more years. The new and advanced 32-bit VAX-11 architecture became the reason for the downfall of 16-bit PDP 11 systems.

Modernizing Legacy PDP 11 Systems with Stromasys

Legacy PDP-11 has been popular in various industry sectors and has been the backbone of several mission-critical operations. If your businesses also heavily rely on PDP software and you want to transform your infrastructure, then Stromasys is the right stop for you.

Stromasys is the industry’s leading legacy systems migration service provider, modernizing the aging infrastructure at less than half the outdated hardware maintenance costs. The Charon PDP solutions emulate legacy PDP-11 hardware on a modern platform like x86 or cloud infrastructure. It allows businesses to seamlessly operate legacy applications like RSX-11M, RT11, and RSTS without any challenges. Also, migrating to a new platform enhances efficiency, security, scalability, and flexibility.

To know more about Charon PDP emulation solutions, you can contact our legacy experts.

Talk to our experts

Final Takeaway

Most computing systems have a smooth life cycle of just 3-5 years, but PDP-11 had a remarkable journey from the 1970s and is still in operation today. It remarks on its astonishing longevity of over 50 years and exceptional design. This 16-bit minicomputer transformed computing with its affordability, accessibility, and flexibility. It also played a significant role in the further development of Unix. However, its limitations led to its obsolescence after the rise of DEC VAX systems.
