The DEC Alpha Processor: A Comprehensive Overview of Its Architecture and Legacy

Understanding the DEC Alpha Processor

The DEC Alpha processor (originally known as Alpha AXP processor) is a 64-bit RISC (Reduced Instruction Set Computer) architecture developed by Digital Equipment Corporation (DEC). It was developed to replace the 32-bit VAX architecture and its Complex Instruction Set Computer (CISC) model.

The DEC Alpha or Alpha AXP processor design aimed to provide high performance for Unix workstations and similar systems with a strong emphasis on both simplicity of design and speed.

Historical Context

The Alpha 21064, the first implementation of architecture as a commercial product, was introduced in 1992. This processor represented a major step forward in microprocessor technology by featuring its dual-issue superscalar architecture that could execute two instructions at once. The following models added further capability, such as on-chip secondary caching in the case of Alpha 21164.

DEC workstations and servers such as the DEC 3000 AXP series used Alpha processors almost exclusively. They also supported other operating systems such as OpenVMS and Tru64 UNIX , in addition to Windows NT, on the same hardware.

Architecture

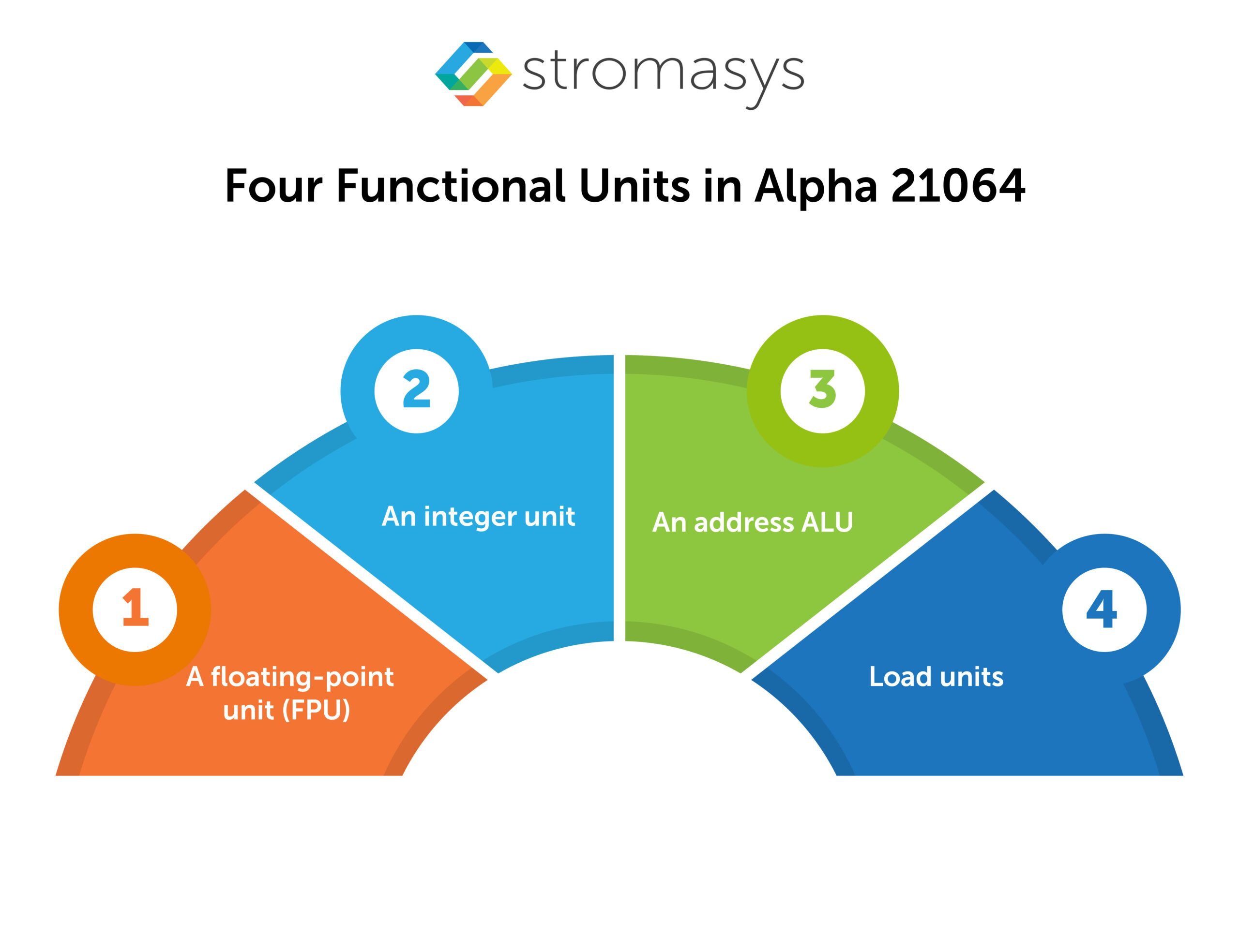

The Alpha 21064 is a dual-issue superscalar microprocessor with super pipelining that executes instructions in order. It can handle up to two instructions per clock cycle across four functional units:

• A floating-point unit (FPU)
• An integer unit
• An address ALU
• Load units

The integer pipeline consists of 7 stages, while the floating-point pipeline has 10 stages. Notably, the first four stages in both pipelines are identical and designed to be implemented by I-Box. The 21064 features a 43-bit virtual address and a 34-bit physical address, enabling it to address 8 TiB of virtual memory and 16 GiB of physical memory.

Integer Instructions

Integer arithmetic instructions handle addition, multiplication, and subtraction of longwords or quadwords. They also compare quadwords and include conditional move instructions. The signed and unsigned comparison instructions check two registers or a register against a literal. If the condition is true, they write ‘1’ to the destination register; otherwise, they write ‘0’.

Bitwise logical instructions include AND (Logical Product), OR (Logical Sum), and XOR (Logical Difference). Instructions like BIC, ORNOT, and EQV use the complement of the second source operand. Shift instructions perform both arithmetic right shifts and logical shifts in either direction.

Key Architectures of DEC Alpha Processors

The rich legacy of DEC Alpha processors lies in the range of processors it has. Let’s look at the two popular architectures among them.

1. DEC Alpha 21164 Processor

• Introduction: Launched in January 1995
• Architecture: Four-issue superscalar processor
• Instruction Handling: Can issue up to four instructions per clock cycle using two integer and two floating-point execution units
• Pipelines:
  • Integer pipeline – 7 stages
• • Floating-point pipeline – 10 stages

• Addressing:
  • Supports a 43-bit virtual address space
• • Supports a 40-bit physical address space

• Integer Pipelines:
  • One for addition and logical operations
• • Another for multiplication and shifts (addition pipeline also handles branch instructions)

• Cache Levels:
  • Three levels – two on-die and one optional external cache
• • Primary cache – Separate 8 KB instruction (I-cache) and data (D-cache), direct-mapped with a 32-byte cache line size
  • Usage – Employed by Cray Research in the Cray T3E supercomputer at 300 MHz.

2. DEC Alpha 21264 Processor

• Introduction: Released in October 1996
• Architecture: Four-issue superscalar design with out-of-order and speculative execution
• Instruction Handling: Can execute up to six instructions per cycle.
• Cache Levels:
  • Two levels – primary cache and secondary cache.
• • Does not include the three-level cache from the DEC Alpha 21164 due to bandwidth limitations

What Happened to the DEC Alpha Processor?

Once a stalwart of high-end computing, the DEC Alpha architecture was brought down by strategic challenges and market forces.

Market Dynamics and Governing Judgements

NT Platform Discontinued

In late August, Compaq announced that it will discontinue selling Alpha systems for the NT platform. That was a huge change in strategy because the NT platform had been one of the primary markets for Alpha processors.

Microsoft’s Move

In the wake of this news, Microsoft decided to put development for Win2K on hold altogether. This was with 32-bit, and the limited support for Alpha in Win2K also affected this version as well, making it less significant in the market.

Windows

Compaq rolled its 64-bit Windows, spending more emphasis on the Intel architecture. This shift signaled a step back from what was possible with Alpha in favor of more marketable choices.

Challenges and Market Performance

Price for Performance Disadvantage

From a performance-per-dollar point of view, Alpha systems always faced a price-for-performance disadvantage compared to NT-based Intel boxes. Alpha could not effectively compete with this economic factor.

Lack Of Software

One of the biggest problems faced by DEC Alpha CPU was a dearth of software that could really utilize its potent architecture. The limited software support diminished the processor’s appeal to prospective customers.

Legacy and Unavoidable Risk

The DEC Alpha CPU was a widely acclaimed high-performance architecture from the 1990s. But eventually it lost its popularity.

In 1998, Compaq acquired DEC and shifted their focus to Intel’s x86 architecture. By 2001, Compaq had sold all Alpha-related intellectual property to Intel, officially ending the Alpha product line.

Consequently, Alpha hardware reached the end of life. It means that there is no more official support from the manufacturer. Companies have to buy spare parts from third-party suppliers, costing them a lot more. Additionally, hiring skilled professionals for obsolete hardware is a cumbersome task.

All of these maintenance and operational challenges make the hardware prone to unplanned downtime, disrupting operations and hampering productivity. Downtime is a major financial issue: A USA Today survey that asked 200 data center managers had an 80% claim that they lost cover USD 50,000 per hour, with 25 percent reporting over USD 500,000.

However, this same hardware is responsible for running OpenVMS and Tru64 Unix applications that are critical to business operations. This boils down to a crucial question: how do businesses continue to run mission-critical legacy applications while avoiding the dangers of old hardware?
