    Did you know that the NASA/ESA Solar Orbiter mission launched in 2020 is powered by technology from the 1990s? Yes, that’s right! It was driven by the SPARC architecture.

    SPARC, a hardware architecture designed for microprocessors, was at its peak in the 1990s. While it may be decades old, some businesses are still using it.

    In this article, we’re going to take a deeper look at the:

    • SPARC architecture
    • It’s history: starting from its inception
    • Key components
    • Where it stands today

    So, come along and let’s explore the legacy architecture together and see what the future might hold for it.

    What is SPARC?

    SPARC, Scalable Processor Architecture, was first introduced by Sun Microsystems in 1987.

    After launch, SPARC became a popular architecture for hardware compatible with UNIX-based operating systems like Solaris. This combination is commonly used in enterprise and high-performance computing.

    SPARC is a 132-and 64-bit microprocessor architecture created as a RISC (Reduced Instruction Set Computing) type computer architecture. This means that SPARC, with RISC, uses a simple set of instructions to execute the tasks quickly. It differs from CISC (Complex Instruction Set Computing) architectures, which use a more complex set of instructions.

    solaris on azure

    Another key feature is that SPARC architecture is non-proprietary. It’s often called open architecture because manufacturers can easily license it to start developing their own microprocessors and semiconductors.

    Moreover, SPARC architecture allows for flexible scaling. It significantly reduces interference and context switching times. The SPARC “register window” structures allow for a significant reduction in in-memory load/store guidelines sets.

    SPARC Architecture: Design Objectives

    Firstly, the word “Scalable” in SPARC means it can be used for anything from small embedded systems to powerful server processors. This scalability meant that as circuit technology improved, the cost-to-performance ratio of new SPARC implementations would also improve.

    Secondly, the main goal of developing the SPARC architecture was to enhance compilers’ efficiency and seamlessly pipelined hardware implementations. The SPARC implementation also aims at higher execution rates, which translate into faster processing speeds.

    Finally, SPARC’s design allowed for quicker development cycles, meaning products could hit the market faster.

    History of SPARC Architecture

    Generally, we can categorize the history of SPARC into three phases:

    1. Development

    SPARC’s journey began in 1984. The initial development phase culminated in 1986 with the introduction of Sun’s first SPARC processor, SPARC V7. The next year, the first SPARC workstation was launched.

    As the architecture evolved, SPARC International was established in 1989 with the instruction set architecture (ISA).

    2. Major Revisions

    • 1992: Sun introduced the 32-bit SPARC V8 and MicroSPARC.
    • 1993: They launched the 64-bit SPARC V9.
    • 1994: MicroSPARC was discontinued.
    • 1995: The first 64-bit UltraSPARC processor came out.
    • 1997: UltraSPARC II was released.
    • 2001: UltraSPARC III hit the market.
    • 2004: They unveiled the dual-core UltraSPARC IV with basic multithreading.
    • 2005: UltraSPARC T1, the first 8-core CMT processor, was launched.
    • 2007: UltraSPARC T2 and the UltraSPARC Architecture 2007 were released, highlighting SPARC’s performance and efficiency.

    3. Oracle Acquisition

    In 2010, Oracle Corporation acquired Sun Microsystems, which brought fresh resources and a new direction to SPARC development.

    • 2012: Oracle released the Oracle SPARC Architecture 2011, introducing VIS 3 extensions and a hyperprivileged mode.
    • 2015: SPARC M7 was launched with VIS 4 extensions and hardware-assisted encryption.
    • 2017: The SPARC M8 hit the market, continuing the advancements in SPARC technology.

    The Features of SPARC Architecture

    First and foremost, SPARC is a load and store architecture, meaning operations are executed over registers. This is why it uses a register window concept to offer many registers.

    Additionally, a delay slot is used to optimize branch instructions. Using these registers and the stack allows arguments to be passed efficiently.

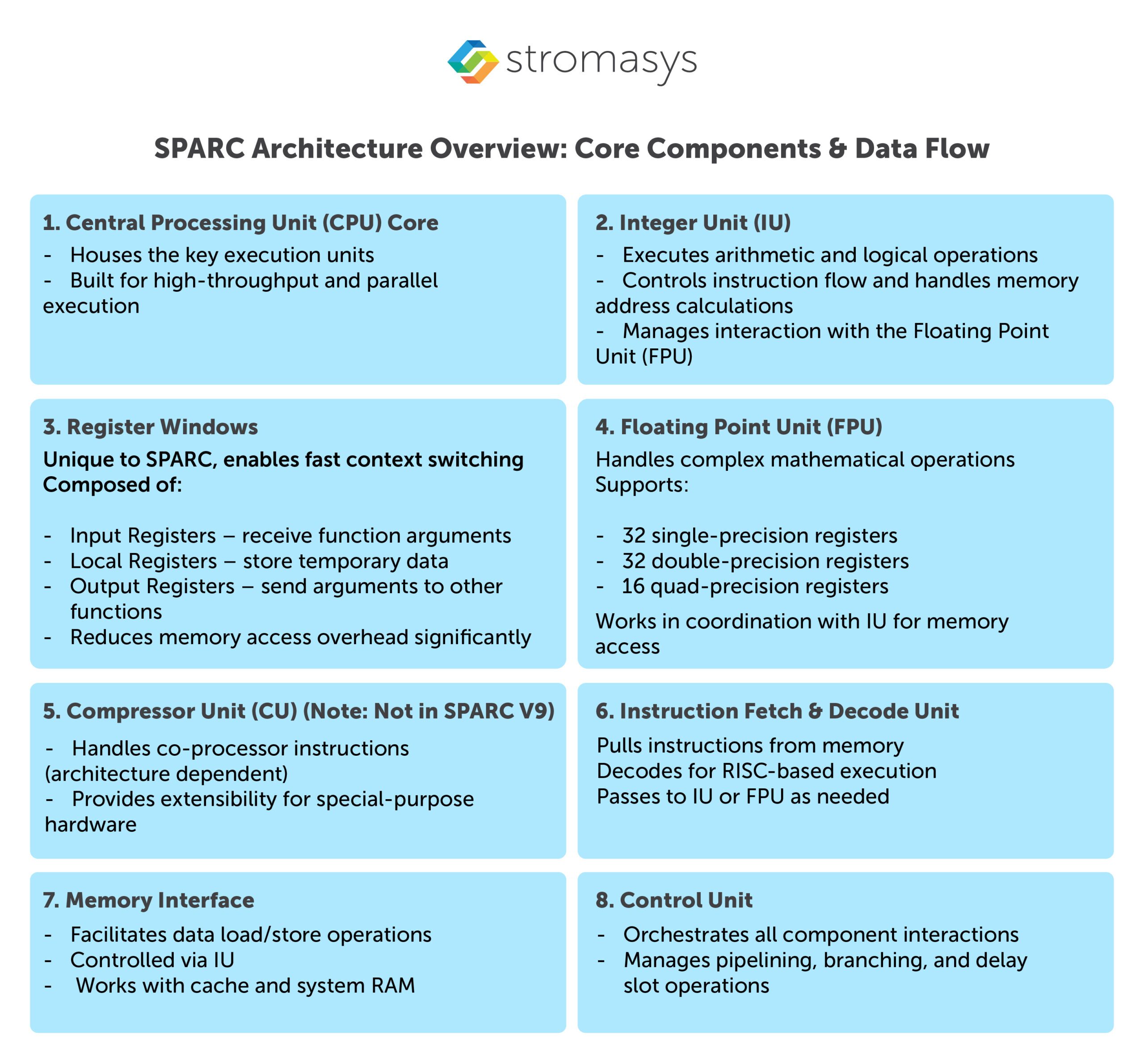

    The Modules of SPARC Architecture

    The key modules of the SPARC architecture are as follows:

    The Integer Unit (IU)

    The Integer Unit (IU) in the SPARC architecture is central to the processor’s operation. It contains many general-purpose registers, ranging from 64 to 528. These are divided into:

    • Eight global registers
    • Eight alternate global registers
    • A circular stack of 3 to 32 sets of 16 registers each, known as register windows

    The IU executes all integer arithmetic instructions and calculates memory addresses for load and store operations. It also manages the program counters and controls the instruction execution for the Floating Point Unit (FPU).

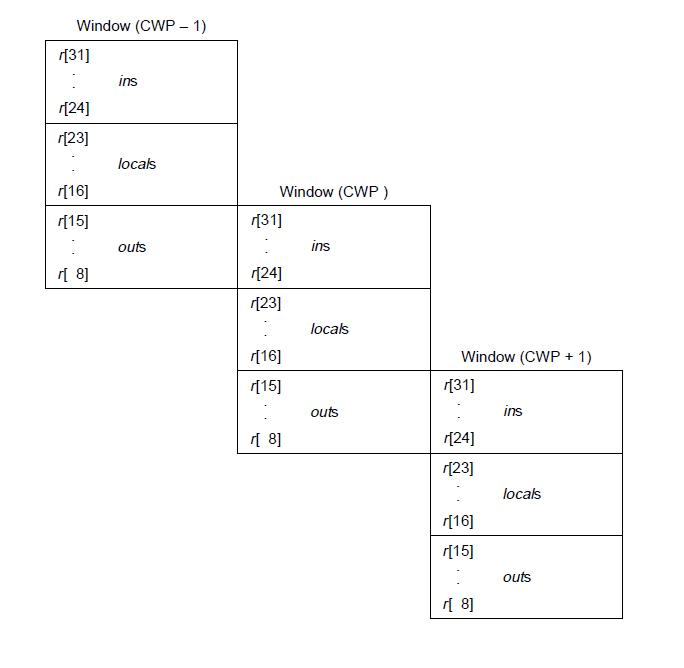

    The Register Window

    register window


    In the SPARC architecture, an instruction can access the eight global registers and a 24-register window at any time.

    A register window consists of a 16-register set, which is divided into:

    •  Eight in registers
    •  Eight local registers

    Additionally, it also includes the eight in registers of an adjacent register set, which are addressable from the current window as its out registers.

    When a procedure is called, the register window shifts by sixteen registers. This shift hides the old input and local registers, and the old output registers become the new input registers.

    Here’s how the registers are used:

    • Input registers: These are used to pass arguments to a function.
    • Local registers: These are used to store local data within a function.
    • Output registers: These are used to place arguments when calling another function.

    The Floating-point Unit (FPU)

    The Floating-Point Unit (FPU) in the SPARC architecture is designed to handle floating-point operations efficiently. It has:

    • 32 single-precision (32-bit) floating-point registers
    • 32 double-precision (64-bit) floating-point registers
    • 16 quad-precision (128-bit) floating-point registers

    Double-precision values use an even-odd pair of single-precision registers, while quad-precision values use an odd-even pair of double-precision registers.

    To move data between the FPU and memory, floating-point load/store instructions are used. The memory address for these operations is calculated by the Integer Unit (IU).

    Floating-Point operate (FPop) instructions are responsible for performing floating-point arithmetic operations and comparisons.

    Compressor Unit (CU)

    The SPARC architecture’s Compressor Unit (CU) includes support for a single, implementation-dependent coprocessor, which has its own set of registers.

    Coprocessor load/store instructions move data between the coprocessor registers and memory. The floating-point instructions mirror the coprocessor instructions.

    Note: There is no Compressor Unit in SPARC V9.

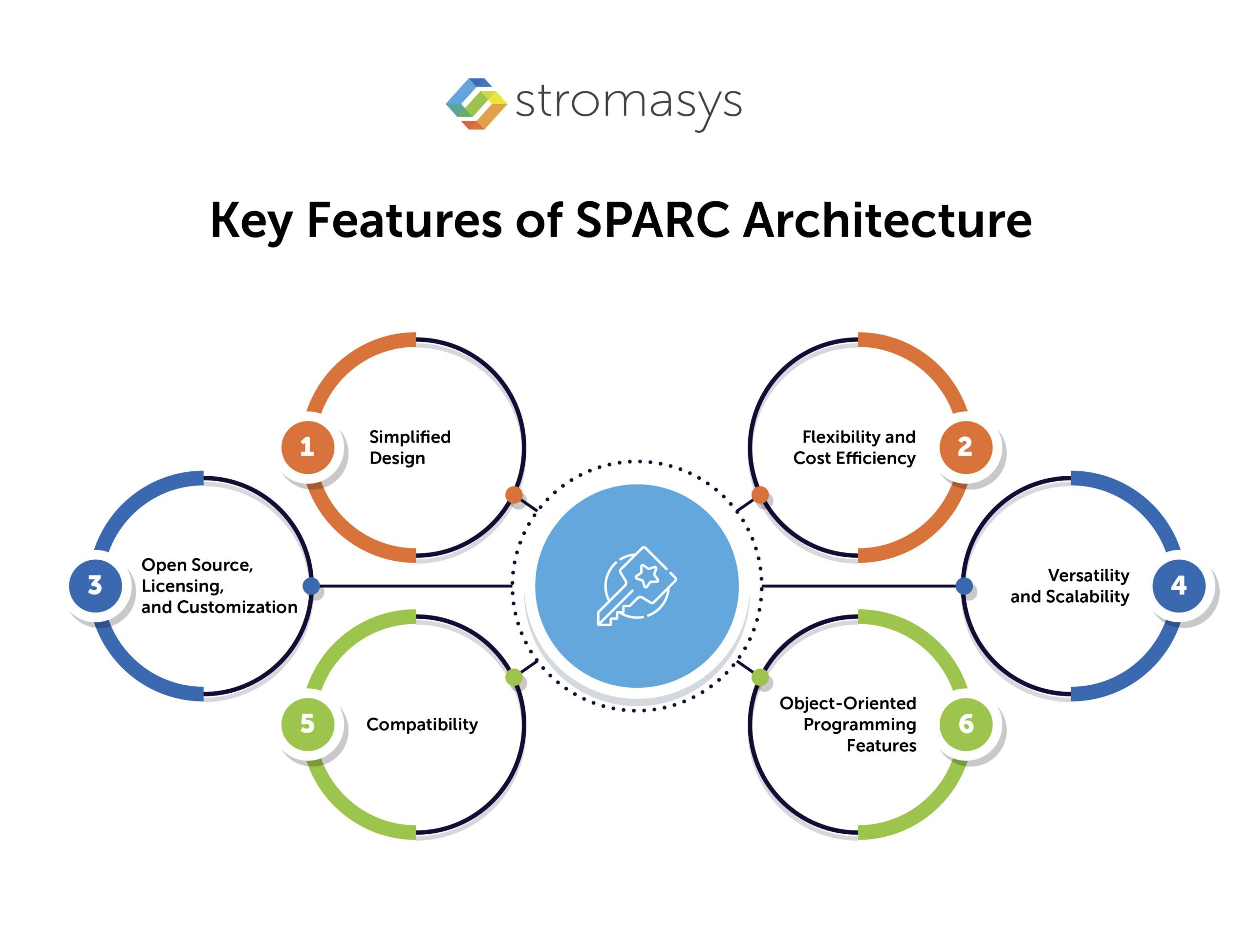

    Key Features of SPARC Architecture

    The SPARC architecture has several distinctive features:

    1. Simplified Design: It uses a higher number of instruction sets and fewer transistors, making it a disentangled and efficient design.

    2. Flexibility and Cost Efficiency: SPARC architecture is highly flexible in terms of capacity and cost. Its integration of memory, cache, and FPUs (Floating-Point Units) is very adaptable.

    3. Open Source, Licensing, and Customization: It offers flexibility in licensing and allows users to configure their solutions using the SPARC architecture.

    4. Versatility and Scalability: The SPARC architecture is versatile and scalable. It is therefore suitable for various applications, including military, technology, aerospace, and many others.

    5. Compatibility: It maintains compatibility across different generations of architecture that ensure longevity and ease of upgrades.

    6. Object-Oriented Programming Features: SPARC supports object-oriented programming features, enhancing its programming capabilities.

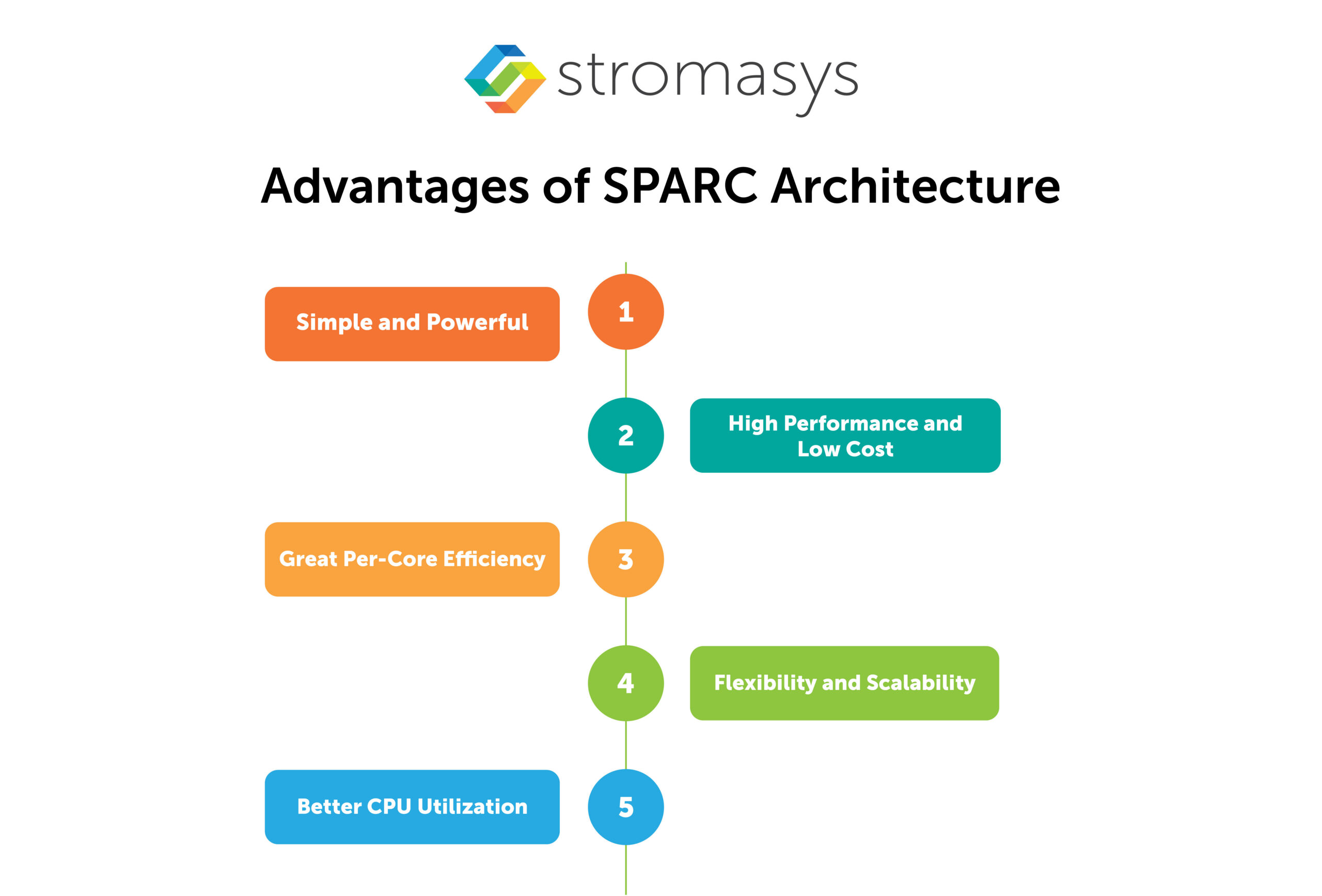

    Simple and Powerful: The SPARC architecture is simple and efficient. This makes it both powerful and easy to use.

    High Performance and Low Cost: SPARC is designed to meet its users’ high expectations and deliver high performance in real-world applications while keeping costs low.

    Great Per-Core Efficiency: SPARC systems often provide 60%-85% more efficiency per core. Thus, you get more performance out of each processor core.

    Flexibility and Scalability: Sun SPARC processors (i.e. Sun servers with SPARC processors) offer excellent flexibility and scalability, along with a high level of availability. This makes them ideal for various demanding applications.

    Better CPU Utilization: The SPARC-V9 architecture supports multiple threads per core, which reduces CPU idle time and increases overall CPU utilization. This leads to better performance.

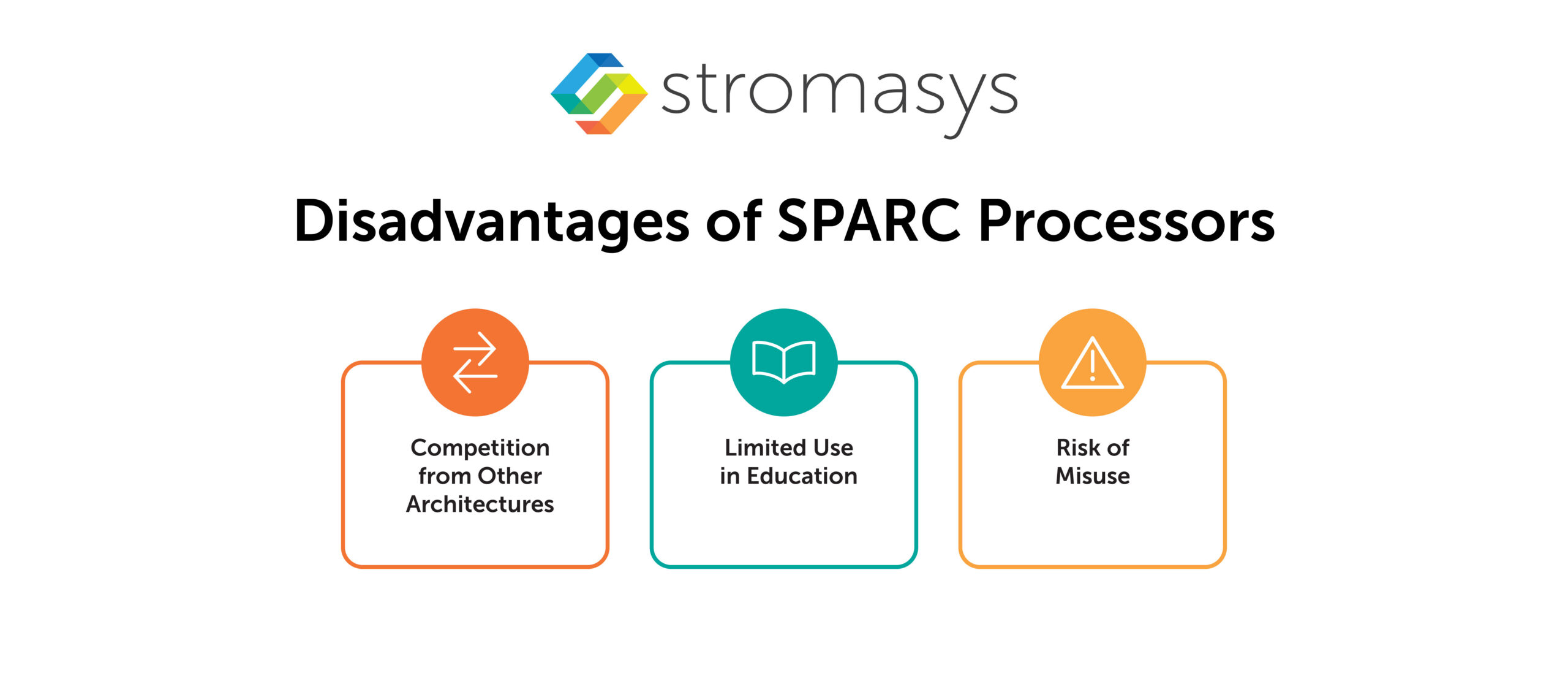

    Competition from Other Architectures: SPARC faces considerable competition from competitors such as x86, ARM, and others. X86 is known for its compatibility with various applications, whereas ARM is popular because of its energy-efficient designs.

    Limited Use in Education: SPARC isn’t typically used in educational settings. It’s more commonly used by developers and computer architects for server applications and low-level programming (unlike more popular educational architectures like MIPS and ARM).

    Risk of Misuse: Since SPARC is an open architecture, it’s accessible to everyone. This openness can lead to the risk of misuse by individuals who might use SPARC-based products improperly.

    Future of SPARC Hardware

    SPARC has been handling mission-critical workloads for organizations for more than 20 years now. It’s known for its excellent scalability, high-end computing, and solid security.

    However, like any legacy hardware, it struggles to handle large amounts of data without significant downtime, which poses a serious business risk. According to Gartner, the average cost of downtime is $5600 per minute.

    The aging SPARC hardware also has a huge maintenance cost. Reliability is also an alarming issue here. Furthermore, finding skilled professionals who can provide modern data support becomes challenging with every passing year. Again, finding replacement parts can be frustrating.

    Well, let’s not forget about the opportunity cost. For instance, a legacy SPARC machine could hinder your plan to move on-premises equipment to a hybrid cloud model as it isn’t certified for use in the hybrid cloud management platform.

    All these costs and operational challenges are daunting. So, is this the end of your SPARC hardware?

    It may seem daunting, but not for our clients. With our Charon-SSP emulator, you can separate your legacy hardware from the software and run your mission-critical applications as usual. No recompilation. Only lifting and shifting.

    Get Started Today!

    Agility, reliability, speed, and a strong ROI are crucial to business success. But sticking to outdated SPARC hardware keeps your IT team anchored in the past when they should be driving innovation and looking ahead.

    Fear not. We have a simple solution for you. With us, you can seamlessly migrate your Solaris application running on SPARC to the cloud. The best part? The migration can be completed without any business interruption, and your end users will not experience any change.

    So, are you ready to eliminate the risk of business failure associated with your old SPARC hardware? The ROI of this lift-and-shift process is substantially high. Would you like to know more? Book a demo today, and get a proven solution from our experts specifically created for your business.

    Frequently Asked Questions (FAQs)

    1. What is SPARC architecture?

    SPARC (Scalable Processor Architecture) is a type of processor design created by Sun Microsystems. It’s known for handling demanding computing tasks, often found in servers and powerful workstations.

    2. What is the SPARC model?

    Basically, it’s a load and store design, which means that it only processes data that’s in the CPU registers. Data is fetched from memory and placed into registers before being processed, and then stored back into memory after processing.

    3. What does SPARC stand for?

    SPARC stands for Scalable Processor Architecture.

    4. What is the SPARC framework?

    The SPARC framework is a set of guidelines for implementing and using the SPARC architecture in computing systems. It ensures that the systems are scalable, efficient, and perform well.

    5. Who uses SPARC?

    SPARC is used by organizations that need robust computing power, like data centers, big enterprises running complex applications, and research institutions that rely on heavy computational tasks.
